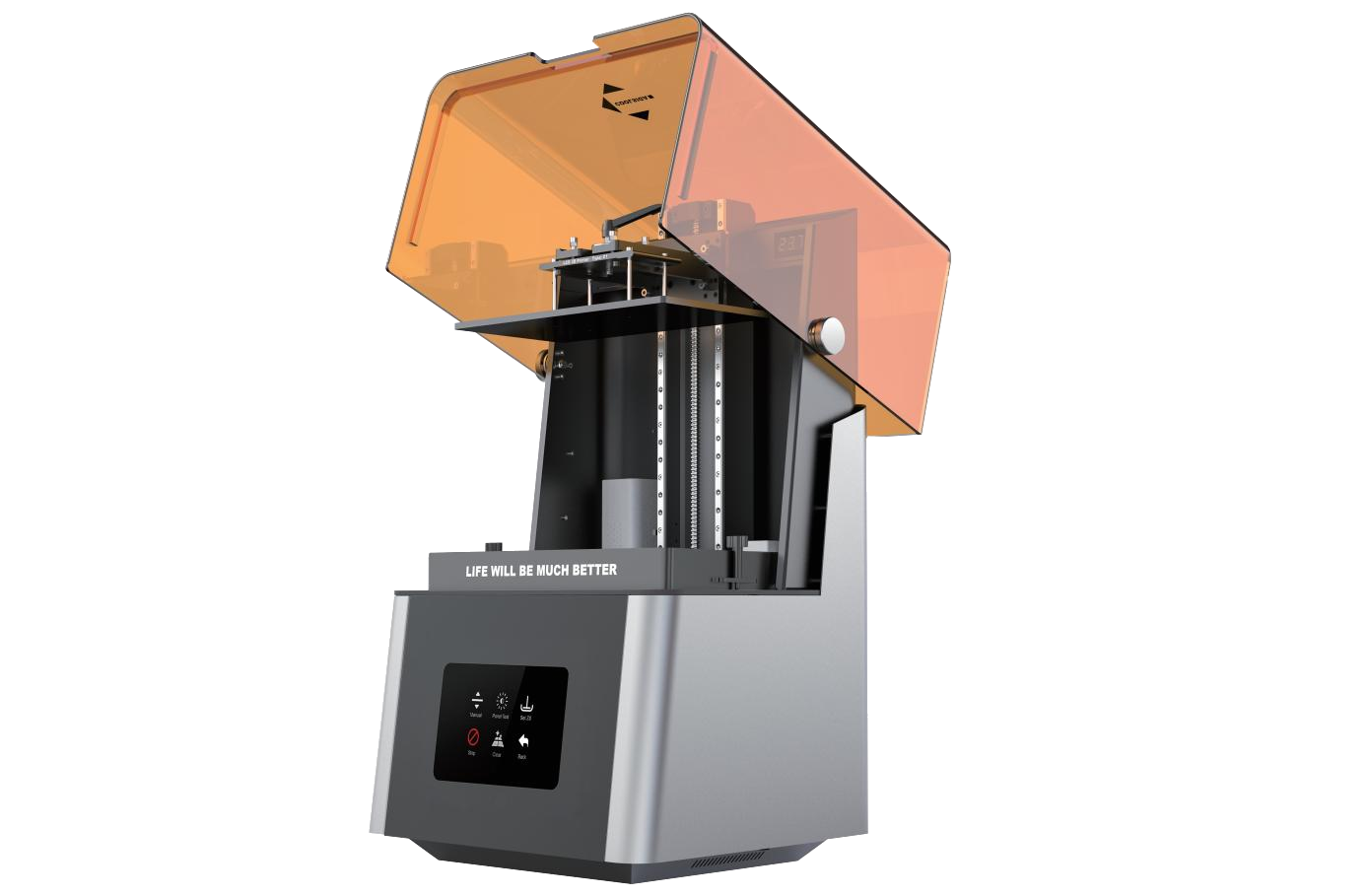

M1 Pro
[ M1 Pro Highlights ]
14K precision10.1-inch 14K screen with 16*24μm XY precision.

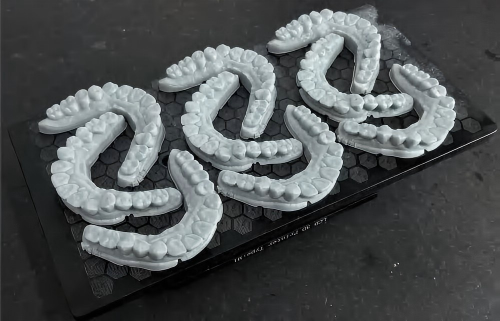

Efficient output223(L)*126(W)*190(H)mm, each build can print 8 units.
Stable Z axisImported screw module with 1μm repeat accuracy.
Air coolingCOB parallel light source with air cooling and ≥95% light uniformity.

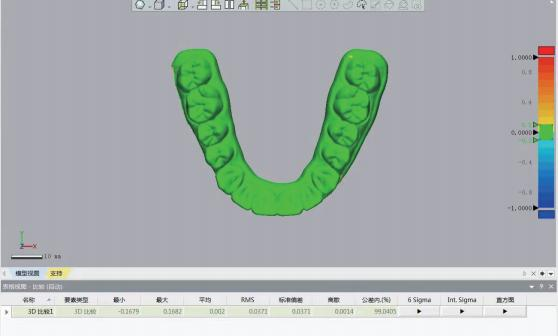

[ Achievable Design Indicators ]
[ Parameter ]
| Parameters | Results |
| Product Model | M1 Pro |
| Product Type | LCD 3D Printer |
| Print Speed | 30-60mm/h, Each build takes less than one hour |

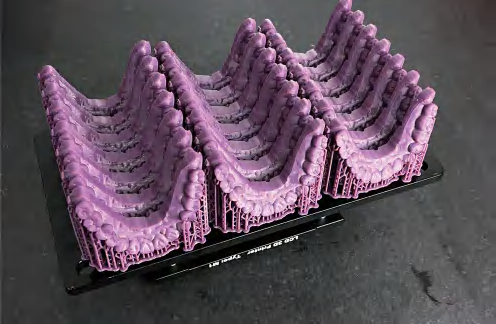

| Build Size | 223(L)*126(W)*190(H)mm, Each build can print 8 units |
| Z-Axis Module | Imported Screw Module |
| Print Resolution | 14K(13320*5120), 16*24μm pixel size |
| Technology Type | LCD |
| Print Method | USB/Memory Printing |
| Layer Thickness | 0.01-0.15mm |
| Slicing Software | CHITUBOX |
| Optical Module | COB Parallel Light Source (Air-cooled) |
| Printing Screen | 10.1-inch 14K |
| Touch Screen | 5-inch Color Capacitive Touch Screen |
| Power Adapter | 110V/220V 120W |
| Power Plug | International Universal Plug |
| Light Uniformity | ≥95% |
| XY-Axis Accuracy | 16*24μm |
| Z-Axis Repeatability | Accuracy 1μm |
| Z-Axis Motor | 57 Closed Loop Motor |
| Temperature Control System | Constant Temperature System |
| Cooling System | Air Cooling System |
| Control System | System CHITUBOX |
| Build Platform | Laser Engraving Platform |
| Machine Dimensions | 360(L)*305(W)*522(H)mm |
| Net Weight | 13kg |
| Compatible Resin | Resin 405nm Photosensitive Resin 02 |
