C1 Pro
[ C1 Pro Highlights ]

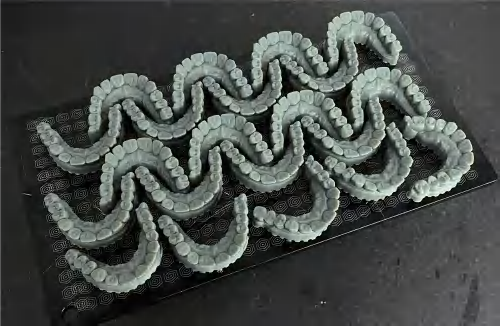

Large build size298(L)*165(W)*290(H)mm, each build can print 18 units.
7K precision13.6-inch 7K screen with 46μm pixel size and 46μm XY precision.
Stable Z axisDual-rail with quad-slider ball screw module and 1μm repeat accuracy.
Water coolingCOB parallel light source with water cooling and ≥95% light uniformity.
[ Achievable Design Indicators ]
[ Parameter ]
| Parameters | Results |
| Product Model | C1 Pro |
| Product Type | LCD 3D Printer |
| Print Speed | 60-120mm/h, Each build takes less than one hour |
| Build Size | 298(L)*165(W)*290(H)mm, Each build can print 18 units |
| Z-Axis Module | Dual-rail with Quad-slider Ball ScrewModule |
| Print Resolution | 7K(6480*3600), 46μm pixel size |
| Technology Type | LCD |
| Print Method | USB/Memory Printing |
| Layer Thickness | 0.01-0.15mm |
| Slicing Software | CoolSlicer/Lychee |
| Optical Module | COB Parallel Light Source (Water-cooled) |
| Printing Screen | 13.6-inch7K |
| Touch Screen | 7 - inch Color Capacitive TouchScreen |
| Power Adapter | 110V/220V 150W |
| Power Plug | International Universal Plug |
| Light Uniformity | ≥95% |
| XY-Axis Accuracy | 46μm |
| Z-Axis Repeatability | Accuracy 1μm |
| Z-Axis Motor | 57 Closed Loop Motor |
| Temperature Control System | Constant Temperature System |
| Cooling System | Water Cooling System |
| Control System | System CoolMaster Intelligent Control System |
| Build Platform | Laser Engraving Platform |
| Machine Dimensions | 421(L)*377(W)*695(H)mm |
| Net Weight | 21kg |
| Compatible Resin | Resin 405nm Photosensitive Resin 03 |
