D1
[ D1 Highlights ]
DLP technologyDLP optical engine D50 module for digital dental production.
50μm XY precisionStable precision for clinical and laboratory workflows.
Stable Z axis57 closed-loop motor with 1μm repeat accuracy.
Workflow softwareCompatible with CoolSlicer and CoolEla slicing software.
[ Achievable Design Indicators ]
[ Parameter ]
| Parameters | Results |

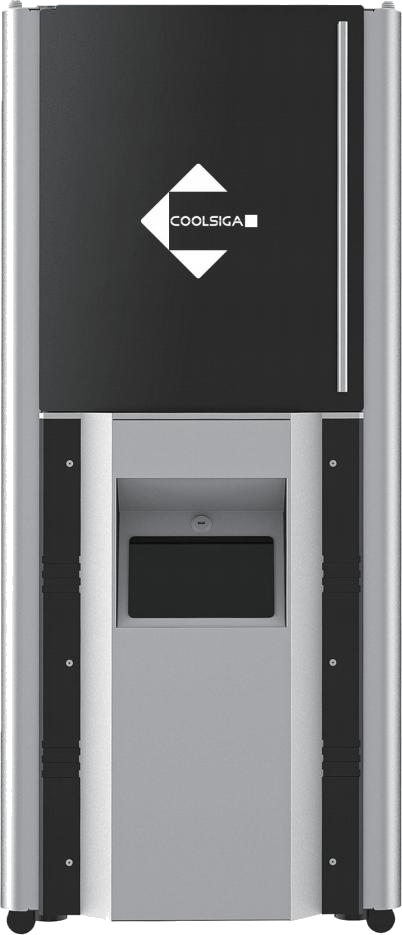

| Product Model | D1 |
| Product Type | DLP 3D Printer |
| Resin Hardness | 82D |
| Viscosity | 200cps |
| Density | 1.1g/cm² |
| Elongation at Break | 120% |
| Shrinkage | 4% |
| Optional Colors | Z Axis Module |
| Technology Type | DLP transparent |
| Print Method | USB/Memory Printing Purple Pink Matcha Green |
| Layer Thickness | 0.01-0.15mm |
| Slicing Software | CoolSlicer CoolEla |
| Optical Module | DLP Optical Engine D50 Module |
| Touch Screen | 7-inch Color Capacitive Touch Screen |
| Power Adapter | 110V/220V |
| Power Plug | International Universal Plug Hardness 70D |
| XY-Axis Accuracy | 50μm Density 1.1g/cm² |
| Z-Axis Repeatability | Accuracy 1μm Tensile Strength 75-80Mpa |
| Z-Axis Motor | 57 Closed Loop Motor Elongation at Break 155% |
| Temperature Control System | Constant Temperature System Shrinkage 3% |
| Cooling System | DLP Cooling Module Optional Colors |
| Control System | System CoolMaster Intelligent Control System |
| Build Platform | Laser Engraving Platform Gray Belge Bright Yellow Yellowish |
| Machine Dimensions | 472(L)*410(W)*890(H)mm transparent |
| Net Weight | 38kg |
| Compatible Resin | Resin 405nm Photosensitive Resin 04 05 |
